CARATTERISTICHE HARDWARE
Interfaccia:
• 1× 2.5G RJ45 WAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 1× Gigabit SFP WAN/LAN Port
• 4× Gigabit RJ45 WAN/LAN Ports
• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Tasto: Reset Button
Alimentazione: 12V/1.5A Adapter
Flash: 128MB NAND
DRAM: 1 GB DDR4
Dimensioni ( L x P x A ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Max Power Consumption:
- 14.2 W (with USB2.0 connected)
- 7.1 W (without USB2.0 connected)

PRESTAZIONI
Sessioni concorrenti: 500,000
New Sessions /Second: 4,200
NAT (Static IP): 2364.45 Mbps / 2343.28 Mbps
NAT(DHCP): 2364.24 Mbps / 2326.21 Mbps
NAT(PPPoE): 2350.93 Mbps / 2125.83 Mbps
NAT (L2TP): 1249.04 Mbps / 831.12 Mbps
NAT (PPTP): 1169.23 Mbps / 1175.52 Mbps
Throughput VPN IPsec:
- ESP-MD5-AES256: 537.12 Mbps
- ESP-SHA1-AES256: 754.65 Mbps
L2TP VPN Throughput:
- Unencrypted: 1442.65 Mbps
- Encrypted: 346.43 Mbps
SSL VPN Throughput: 142.99 Mbps
66 Byte Packet forwarding rate: 1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate: 2461.18 Mbps / 2457.32 Mbps

FUNZIONI DI BASE
Tipo connessione WAN:
• IPv4_Static IP
• IPv4_Dynamic IP
• IPv4_PPPOE
• IPv4_L2TP
• IPv4_PPTP
• IPv6_PPP
• IPv6_DHCPv6
• IPv6_Static IP
• IPv6_6in4
• IPv6_Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC clone: Modify WAN/LAN MAC Address†
DHCP:
• DHCP Server/Client
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6: WAN Connection
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy

FUNZIONALITA' AVANZATE
Routing avanzato:
• Static Routing
• Policy Routing
Bandwidth control:
• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load balance:
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT:
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Sicurezza:
• Attack Defense:
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN
• Filtering:
- Web Group Filtering
- URL Filtering
- Web Security
• ARP Inspection:
- Sending GARP Packets
- ARP Scanning
- IP-MAC Binding
• Access Control:
- Source/Destination IP Based Access Control
Session Limit: IP-based Session Limit

VPN
VPN IPsec:
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
VPN PPTP:
• PPTP VPN Server
• PPTP VPN Clients (12)
• 60 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
VPN L2TP:
• L2TP VPN Server
• L2TP VPN Clients (12)
• 60 Tunnels (Shared with PPTP)
• L2TP over IPSec
OpenVPN:
• OpenVPN Server
• OpenVPN Clients (6)
• 66 OpenVPN Tunnels

SICUREZZA
Filtering:
- WEB Group Filtering
- URL Filtering
- Web Security
ARP inspection:
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack defence:
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control: Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication:
• No Authentication
• Simple Password
• Hotspot (Local User/Voucher /SMS/Radius)
• External Radius Sever
• External Portal Sever
• Facebook

GESTIONE
Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Servizio: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Manutenzione:
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Syslog Support
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features:
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:

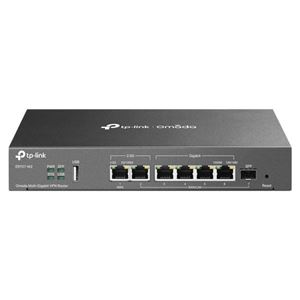

• ER707-M2
• Power Adapter
• Quick Installation Guide
Requisiti di sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing
